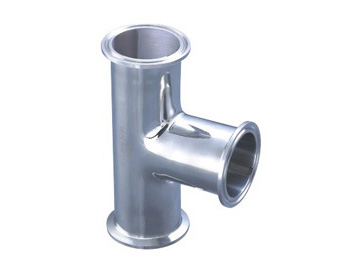

不锈钢卡箍式三通
| 卡箍式三通 | |||
 |
Size | L1 | B |
| 1″ | 60.3 | 50.5 | |
| 11/2″ | 69.9 | 50.5 | |
| 2″ | 88.9 | 64.0 | |
| 21/2″ | 88.9 | 77.5 | |
| 3″ | 95.3 | 91.0 | |
| 4″ | 114.3 | 119.0 | |
| 卡箍式三通 | |||
 |
Size | L1 | B |
| 1/2″ | 57.2 | 25.4 | |
| 3/4″ | 60.3 | 25.4 | |
| 1″ | 66.7 | 50.5 | |
| 11/2″ | 73.0 | 50.5 | |
| 2″ | 88.7 | 64.0 | |
| 21/2″ | 92.1 | 77.5 | |
| 3″ | 98.4 | 91.0 | |
| 4″ | 120.7 | 119.0 | |
| 卡箍式三通 | |||
 |
Size | L1 | L2 |
| DN16 | 53.0 | 34.0 | |
| DN20 | 58.0 | 34.0 | |
| DN25 | 71.5 | 50.5 | |
| DN32 | 76.5 | 50.5 | |
| DN40 | 81.3 | 50.5 | |
| DN50 | 91.5 | 64.0 | |
| DN65 | 108.0 | 91.0 | |
| DN80 | 118.0 | 106.0 | |
| DN100 | 128.0 | 119.0 | |
| 卡箍式三通 | |||
 |
Size | L1 | B |
| 1″ | 55.0 | 50.5 | |
| 11/4″ | 59.5 | 50.5 | |
| 11/2″ | 70.0 | 50.5 | |
| 2″ | 82.0 | 64.0 | |
| 21/2″ | 105.0 | 77.5 | |
| 3″ | 110.0 | 91.0 | |
| 31/2″ | 125.0 | 108.0 | |
| 4″ | 148.5 | 119.0 | |
