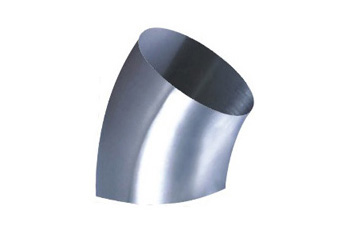

不锈钢焊接式45°弯头
| 焊接式弯头(45°) | ||||
 |
Size | L1 | D | R |
| 1″ | 15.8 | 25.4 | 38.1 | |
| 11/2″ | 23.8 | 38.1 | 57.2 | |
| 2″ | 31.8 | 50.8 | 76.2 | |
| 21/2″ | 39.7 | 63.5 | 95.3 | |
| 3″ | 47.6 | 76.2 | 114.3 | |
| 4″ | 63.5 | 101.6 | 152.4 | |
| 6″ | 94.7 | 152.4 | 228.6 | |
| 焊接式弯头(45°) | ||||
 |
Size | L1 | D | R |
| DN10 | 10.7 | 12.0 | 26.0 | |
| DN16 | 14.5 | 18.0 | 35.0 | |
| DN20 | 16.5 | 22.0 | 40.0 | |
| DN26 | 20.7 | 28.0 | 50.0 | |
| DN32 | 22.8 | 34.0 | 55.0 | |
| DN40 | 24.8 | 40.0 | 60.0 | |
| DN50 | 29.0 | 52.0 | 70.0 | |
| DN66 | 33.2 | 70.0 | 80.0 | |
| DN80 | 37.3 | 85.0 | 90.0 | |
| DN100 | 41.5 | 104.0 | 100.0 | |
| DN125 | 77.5 | 129.0 | 187.0 | |
| DN150 | 93.2 | 154.0 | 225.0 | |
| 焊接式弯头(45°) | ||||
 |
Size | L1 | D | R |
| 1″ | 13.9 | 25.4 | 33.5 | |
| 11/4″ | 15.7 | 32.0 | 38.0 | |
| 11/2″ | 20.1 | 38.1 | 48.5 | |
| 2″ | 25.1 | 50.8 | 60.5 | |
| 21/2″ | 34.6 | 63.5 | 83.5 | |
| 3″ | 36.7 | 76.2 | 88.5 | |
| 31/2″ | 42.9 | 89.0 | 103.5 | |
| 4″ | 52.6 | 101.6 | 127.0 | |
