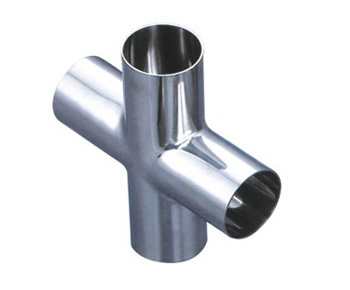

不锈钢焊接式四通
| 焊接式四通 | |||
 |
Size | L1 | D |
| 1″ | 47.6 | 25.4 | |
| 11/2″ | 57.2 | 38.1 | |
| 2″ | 76.2 | 50.8 | |
| 21/2″ | 76.2 | 63.5 | |
| 3″ | 82.6 | 76.2 | |
| 4″ | 98.4 | 101.6 | |
| 焊接式四通 | |||
 |
Size | L1 | D |
| 1/2″ | 47.6 | 12.7 | |
| 3/4″ | 50.8 | 19.05 | |
| 1″ | 54.0 | 25.4 | |
| 11/2″ | 60.3 | 38.1 | |
| 2″ | 73.0 | 80.8 | |
| 21/2″ | 79.4 | 63.8 | |
| 3″ | 85.7 | 76.2 | |
| 4″ | 104.8 | 101.6 | |
| 焊接式四通 | |||
 |
Size | L1 | D |
| 1″ | 65.0 | 25.4 | |
| 11/2″ | 85.0 | 38.1 | |
| 2″ | 110.0 | 50.8 | |
| 21/2″ | 135.0 | 63.0 | |
| 3″ | 155.0 | 76.2 | |
| 4″ | 195.0 | 101.6 | |
| 焊接式四通 | |||
 |
Size | L1 | D |
| DN25 | 50.0 | 28.0 | |
| DN32 | 55.0 | 34.0 | |
| DN40 | 60.0 | 40.0 | |
| DN50 | 70.0 | 52.0 | |
| DN65 | 80.0 | 70.0 | |
| DN80 | 90.0 | 85.0 | |
| DN100 | 100.0 | 104.0 | |
| 焊接式四通 | |||
 |
Size | L1 | D |
| 1″ | 33.5 | 25.4 | |
| 11/4″ | 38.0 | 32.0 | |
| 11/2″ | 48.5 | 38.0 | |
| 2″ | 60.5 | 51.0 | |
| 21/2″ | 93.5 | 63.5 | |
| 3″ | 88.5 | 76.0 | |
| 31/2″ | 103.5 | 89.0 | |
| 4″ | 127.0 | 101.6 | |
| 焊接式四通 | ||||
 |
Size | L1 | L2 | D |
| 25 | 65.0 | 15.0 | 25.4 | |
| 38 | 70.0 | 21.0 | 38.0 | |
| 51 | 82.0 | 29.0 | 50.5 | |
| 63.5 | 105.0 | 38.0 | 63.5 | |
| 76.2 | 110.0 | 44.0 | 76.2 | |
| 102 | 150.0 | 58.0 | 101.6 | |
