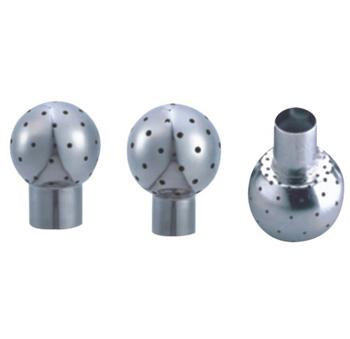

不锈钢清洗球
| 插销式LZ10-008 | ||||
 |
Size | A | Q | |
| 1″ | 95.0 | 63.0 | ||
| 1 1/2″ | 110.0 | 76.0 | ||
| 2″ | 125.0 | 91.0 | ||
| 2 1/2″ | 135.0 | 100.0 | ||
| Technical parameter | ||||
| Size | Pressure(bar) | Cleaning radius(m) | Fluxation m³/h | |
| 1″ | 2.5 | 1.0~1.25 | 17/10 | |
| 1.1/4″-1 1/2″ | 2.5 | 1.25~1.75 | 23/17 | |
| 2″ | 3.5 | 2.0~3.0 | 55/38 | |
| 2 1/2″ | 3.5 | 3.0~3.5 | 58/41 | |
| 焊接式LZ10-007 | ||||
 |
Size | A | Q | |
| 1″ | 72.0 | 53.0 | ||
| 1 1/2″ | 85.0 | 63.0 | ||
| 2″ | 87.0 | 91.0 | ||
| 2 1/2″ | 102.0 | 100.0 | ||
| Technical parameter | ||||
| Size | Pressure(bar) | Cleaning radius(m) | Fluxation m³/h | |
| 1″ | 2.5 | 1.0~1.25 | 17/10 | |
| 1.1/4″-1 1/2″ | 2.5 | 1.25~1.75 | 23/17 | |
| 2″ | 3.5 | 2.0~3.0 | 55/38 | |
| 2 1/2″ | 3.5 | 3.0~3.5 | 58/41 | |
| 卡箍式LZ10-006 | ||||
 |
Size | A | Q | |
| 1″ | 80.0 | 63.0 | ||
| 1 1/4″ | 93.0 | 76.0 | ||
| 1 1/2″ | 93.0 | 76.0 | ||
| 2″ | 108.0 | 91.0 | ||
| 2 1/2″ | 115.0 | 100.0 | ||
| Technical parameter | ||||
| Size | Pressure(bar) | Cleaning radius(m) | Fluxation m³/h | |
| 1″ | 2.5 | 1.0~1.25 | 17/10 | |
| 1.1/4″-1 1/2″ | 2.5 | 1.25~1.75 | 23/17 | |
| 2″ | 3.5 | 2.0~3.0 | 55/38 | |
| 2 1/2″ | 3.5 | 3.0~3.5 | 58/41 | |
| 螺纹式LZ10-005 | ||||
 |
Size | A | Q | |
| 1″ | 72.0 | 63.0 | ||
| 1 1/4″ | 85.0 | 76.0 | ||
| 1 1/2″ | 87.0 | 76.0 | ||
| 2″ | 102.0 | 91.0 | ||
| Technical parameter | ||||
| Size | Pressure(bar) | Cleaning radius(m) | Fluxation m³/h | |
| 1″ | 2.5 | 1.0~1.25 | 17/10 | |
| 1.1/4″-1 1/2″ | 2.5 | 1.25~1.75 | 23/17 | |
| 2″ | 3.5 | 2.0~3.0 | 55/38 | |
| 2 1/2″ | 3.5 | 3.0~3.5 | 58/41 | |
